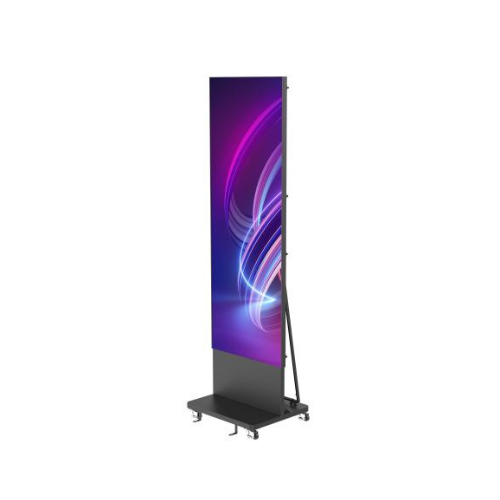

DS-D4512CH-1FQF LED Display Cabinet – Ultra-Fine Pitch Indoor LED Solution
The DS-D4512CH-1FQF LED Display Cabinet is a premium indoor LED solution designed for ultra-high resolution and superior visual performance. With a fine pixel pitch of P1.2 and advanced display technology, this model is ideal for applications requiring close viewing distance and exceptional image clarity.
Built with a die-cast aluminum cabinet and modular structure, the DS-D4512CH-1FQF ensures lightweight installation and high structural stability. The magnetic front-access design enables easy maintenance and quick module replacement, reducing downtime during operation.
Equipped with high refresh rate technology and advanced grayscale processing, the display delivers smooth visuals, precise color accuracy, and excellent brightness uniformity. The HOB protection layer enhances durability against moisture and impact, making it reliable for long-term indoor usage.
Technical Specifications – DS-D4512CH-1FQF
| Product Information | |
|---|---|
| Product Model | DS-D4512CH-1FQF |
| Cabinet | |
| Pixel Configuration | SMD Triad LED (with glue) |
| Pixel Pitch Category | P1.2 |
| Pixel Pitch | 1.25 mm |
| Lamp Bead Dimensions | 1.02 × 1.02 mm |
| Module Components | Cabinet × 5, single cabinet LED module (2 × 2) |
| Dimensions (W × H × D) | 600 × 1687.5 × 29.5 mm |
| Resolution | 480 × 1350 |
| Area | 1.0125 m² |
| Pixel Density | 640,000 dots/m² |
| Lamp Board Housing | Without housing, glue potting |
| Cabinet Material | Die-casting Aluminum |
| Maintenance Method | Front maintenance |
| Display | |
| White Balance Brightness | 600 cd/m² |
| Color Temperature | 1700K – 15000K (adjustable) |
| Viewing Angle | 160° (H) / 160° (V) |
| Contrast Ratio | 4000:1 |
| Color Uniformity | ±0.003 Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Processing Performance | |
| Driving Method | Constant Current Driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Grey Level | 22-bit+ |
| Power | |
| Input Voltage | 100–240 VAC ±10% |
| Max. Consumption | ≤ 460 W/m² |
| Average Consumption | ≤ 153 W/m² |
| Working Environment | |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 10% – 60% RH |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | -20% – 60% RH |
| General | |
| Package Dimensions | 2070 × 665 × 350 mm |
| Accessories | LED beads, IC chips, cables, remote control, tools, 2 spare LED modules, 1 spare HUB board |
| Gross Weight | 90.5 kg |
| Net Weight | 89.7 kg |
