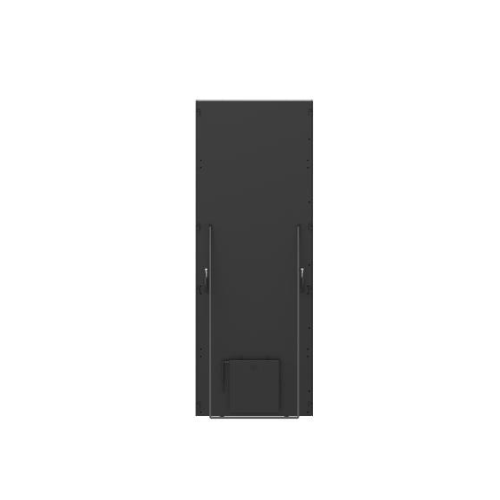

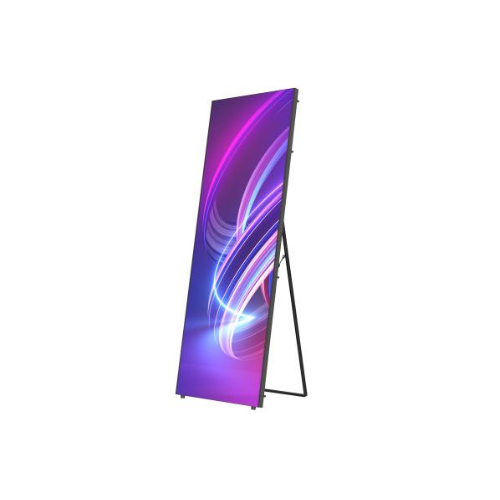

DS-D4525CH-1FQ LED Display Cabinet – Reliable Indoor LED Solution
The DS-D4525CH-1FQ LED Display Cabinet is a high-quality indoor LED solution designed for stable performance, flexible installation, and excellent visual clarity. With a robust die-cast aluminum structure and lightweight design, this model ensures easy deployment and long-term durability across various professional display environments.
Featuring a magnetic modular design, the cabinet supports fast installation and seamless splicing, making it ideal for scalable LED display systems. The front maintenance structure allows easy servicing and quick component replacement, minimizing downtime and improving operational efficiency.
With advanced image processing and high refresh rate technology, the DS-D4525CH-1FQ delivers smooth visuals, accurate color reproduction, and consistent brightness. Its HOB protection enhances resistance to environmental impacts, ensuring reliability in close-range indoor viewing applications.
Technical Specifications – DS-D4525CH-1FQ
| Product Information | |
|---|---|
| Product Model | DS-D4525CH-1FQ |
| Cabinet | |
| Pixel Configuration | SMD Triad LED (with glue) |
| Pixel Pitch Category | P2.5 |
| Pixel Pitch | 2.5 mm |
| Lamp Bead Dimensions | 1.6 × 1.6 mm |
| Module Components | Cabinet × 5, single cabinet (2 × 2) |
| Dimensions (W × H × D) | 600 × 1687.5 × 29.5 mm |
| Resolution | 240 × 675 |
| Area | 1.0125 m² |
| Pixel Density | 161,185 dots/m² |
| Lamp Board Housing | Without housing, glue potting |
| Cabinet Material | Die-casting Aluminum |
| Maintenance Method | Front maintenance |
| Display | |
| White Balance Brightness | 600 cd/m² |
| Color Temperature | 1700K – 15000K (adjustable) |
| Viewing Angle | 160° (H) / 160° (V) |
| Contrast Ratio | 4000:1 |
| Color Uniformity | ±0.003 Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Processing Performance | |
| Driving Method | Constant Current Driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Grey Level | 22-bit+ |
| Power | |
| Input Voltage | 100–240 VAC ±10% |
| Max. Consumption | ≤ 385 W/m² |
| Average Consumption | ≤ 128 W/m² |
| Working Environment | |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 10% – 60% RH |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | -20% – 60% RH |
| General | |
| Package Dimensions | 1860 × 715 × 186 mm |
| Accessories | LED beads, IC chips, cables, remote, tools, spare module |
| Gross Weight | 39 kg |
| Net Weight | 33.4 kg |
